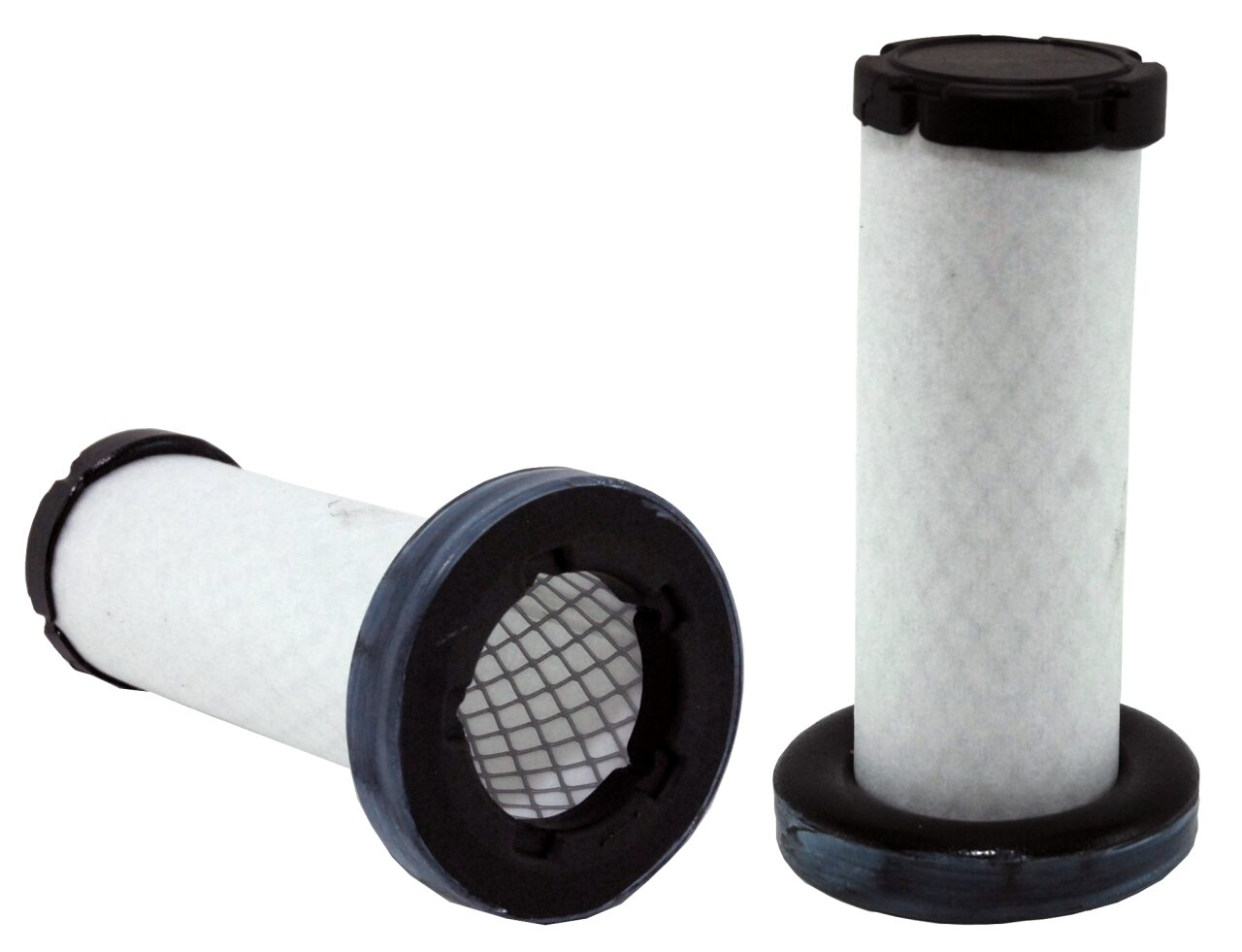

Air Filter
WA10045

About this item

WIX HD Air Filters feature premium filtration media with a skip a pleat media stabilization and pleat stabilization beads (where applicable). WIX HD Air Filters have a minimum efficiency of 99% contaminant removal (per ISO 5011, based on WIX 46664, WIX 42803, WIX 46761, WIX 46433).

  • A = 85 mm; C = 72 mm; D = 123 mm; H = 236 mm

GTIN code: 765809228689

Product Details

A 85 mm
C 72 mm
D 123 mm
H 236 mm

Model Type Filter Type Engine Code ccm kW HP Year of manufacture
S630 (A3NT11001-11547; A3NU11001-11003) Kubota V3307-DI-TE3 Int. Tier4 3300 55 74 01/10 → 12/17
S650 (A3NV11001-11444; A3NW11001 -11098) Kubota V3307-DI-TE Tier 3B 3300 55 74 01/10 → 12/17
Model Type S630 (A3NT11001-11547; A3NU11001-11003)
Filter Type
Engine Code Kubota V3307-DI-TE3 Int. Tier4
ccm 3300
kW 55
HP 74
Year of manufacture 01/10 → 12/17
Model Type S650 (A3NV11001-11444; A3NW11001 -11098)
Filter Type
Engine Code Kubota V3307-DI-TE Tier 3B
ccm 3300
kW 55
HP 74
Year of manufacture 01/10 → 12/17

Model Type Filter Type Engine Code ccm kW HP Year of manufacture
T630 Interm Tier 4 (A7PU11001 ->) Kubota V3307-DI-TE3 - 54 74 01/11 →
T650 Interm Tier 4 (A3P011001 ->) Kubota V3307-DI-TE3 3331 55 75 01/11 →
Model Type T630 Interm Tier 4 (A7PU11001 ->)
Filter Type
Engine Code Kubota V3307-DI-TE3
ccm -
kW 54
HP 74
Year of manufacture 01/11 →
Model Type T650 Interm Tier 4 (A3P011001 ->)
Filter Type
Engine Code Kubota V3307-DI-TE3
ccm 3331
kW 55
HP 75
Year of manufacture 01/11 →

  • 7008044

No Data Available

SVHC declaration according to the regulation EC 1907/2006 concerning the Registration, Evaluation, Authorisation, and Restriction of Chemicals (REACH).



Product: WA10045

MANN+HUMMEL is well aware of REACH and meets all legal obligations under this regulation.

MANN+HUMMEL has established internal processes to ensure implementation and compliance with the REACH Regulation. Especially, we continuously work on the assessment of the presence of SVHC (Substances of Very High Concern).

We may inform you that according to the present level of information and best knowledge, this product does not contain any SVHC listed on the Candidate List in a concentration above 0,1% (w/w).

Last update: 2025-05-28 00:00:00
