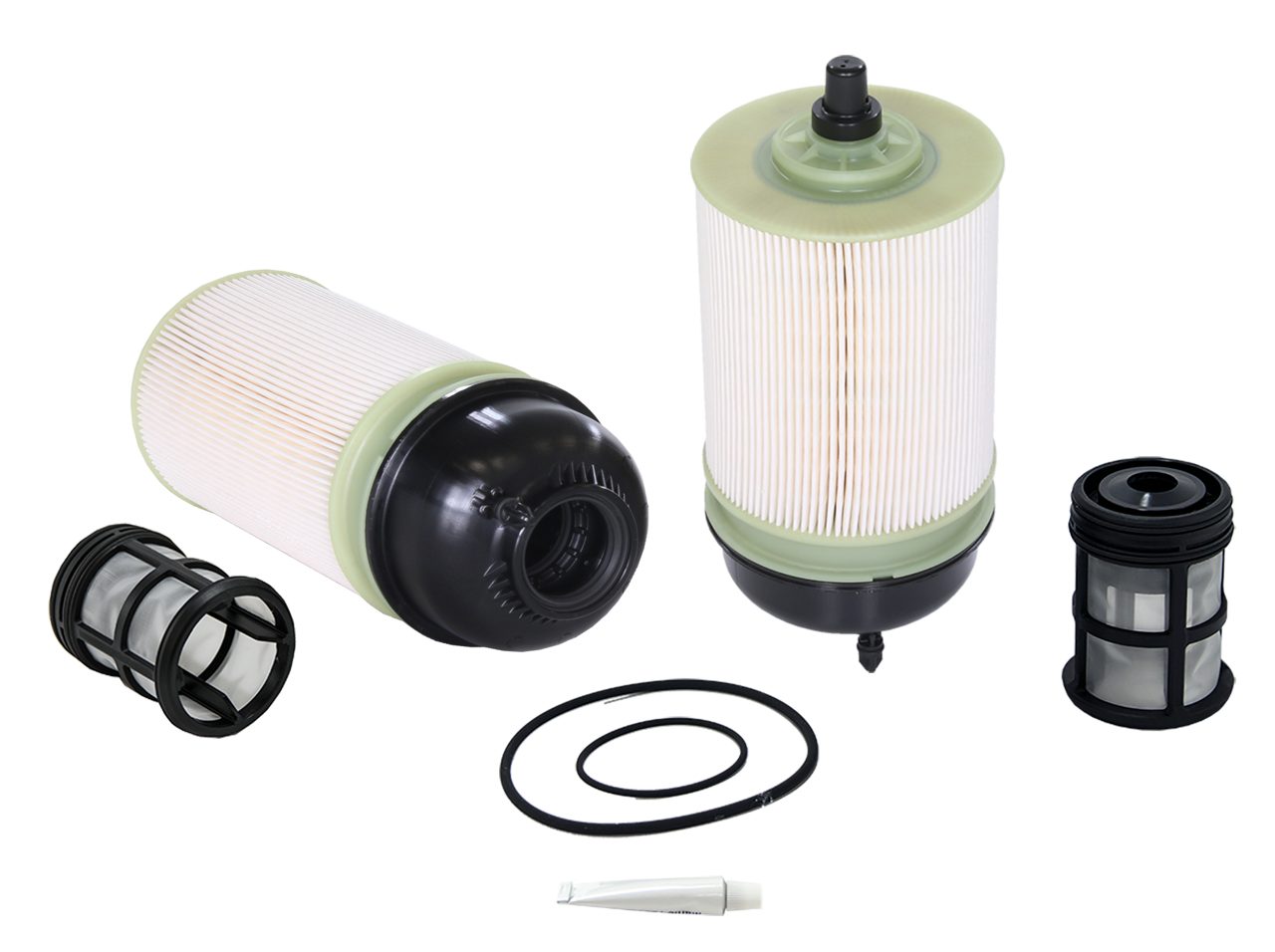

WF10103
WF10103

Fuel Filter
WF10103

About this item

WIX HD Fuel Filters offer high-quality, high-efficiency media specific to the application such as medium and heavy trucks, farm, construction, mining and other equipment applications. WIX HD Fuel Filters feature corrosion-resistant components for leak-resistant, long-lasting performance under all types of operating conditions.

  • Height = 255,219 mm; Outside Diameter Top = 116,84 mm; Outside Diameter Bottom = 104,267 mm; Inside Diameter Bottom = 41,707 mm; Nominal Micron Rating = 4 µm; Beta Ratio = 75=4; Flow Type = Full flow; Media Type = Cellulose

GTIN code:

Product Details

No Data Available

Height 255.2 mm
Inside Diameter Bottom 41.7 mm
Outside Diameter Bottom 104.3 mm
Outside Diameter Top 116.8 mm

Filter media material
Beta Ratio 75=4
Nominal Micron Rating 4
Operating temperature min. (°C) -17.777
Operating temperature max. (°C) -17.777
Filter with by-pass valve No
Filter with anti-drain valve No
Filter with anti-siphon valve No

No Data Available

  • A4700903151

No Data Available

SVHC declaration according to the regulation EC 1907/2006 concerning the Registration, Evaluation, Authorisation, and Restriction of Chemicals (REACH).



Product: WF10103

MANN+HUMMEL is well aware of REACH and meets all legal obligations under this regulation.

MANN+HUMMEL has established internal processes to ensure implementation and compliance with the REACH Regulation. Especially, we continuously work on the assessment of the presence of SVHC (Substances of Very High Concern).

We may inform you that according to the present level of information and best knowledge, this product does not contain any SVHC listed on the Candidate List in a concentration above 0,1% (w/w).
