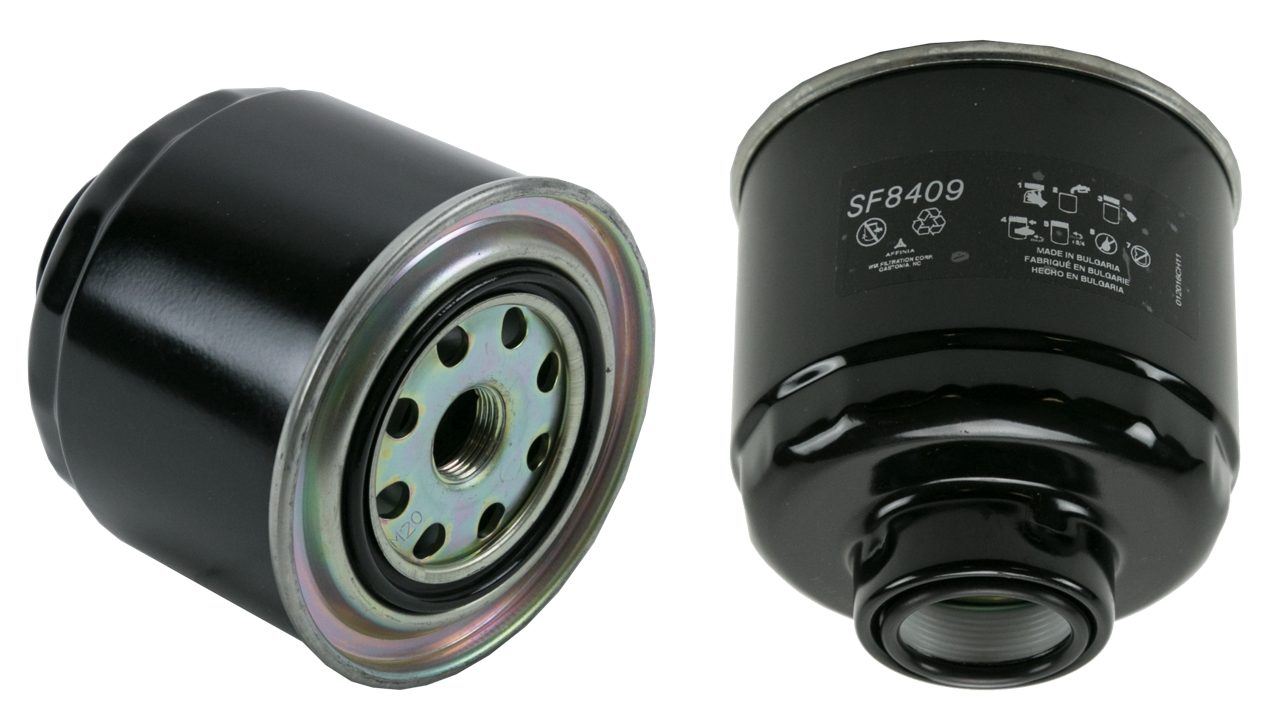

WF8409
WF8409

Fuel Filter
WF8409

About this item

WIX HD Fuel Filters offer high-quality, high-efficiency media specific to the application such as medium and heavy trucks, farm, construction, mining and other equipment applications4. WIX HD Fuel Filters feature corrosion-resistant components for leak-resistant, long-lasting performance under all types of operating conditions.

  • A = 107 mm; B = 72 mm; C = 66 mm; F = M36x1.5; G = M20x1.5; H = 104 mm

GTIN code:

Product Details

A 107 mm
B 72 mm
C 66 mm
F M36x1.5 mm
G M20x1.5 mm
H 104 mm

Model Type Filter Type Engine Code ccm kW HP Year of manufacture
2.5 DI-D 4D56-HP 2477 130 178 01/09 → 12/15
2.5 DI-D 4D56 (16V) 2477 94 128 08/07 → 12/15
3.2 16V DOHC (ML KB8) 4M41 3200 118 160 07/06 → 08/09
3.2 16V DI-D 4WD (Triton HPE CD Aut/Mec)
4M41 DI-D common-rail 3200 121 165 01/08 →
Model Type 2.5 DI-D
Filter Type
Engine Code 4D56-HP
ccm 2477
kW 130
HP 178
Year of manufacture 01/09 → 12/15
Model Type 2.5 DI-D
Filter Type
Engine Code 4D56 (16V)
ccm 2477
kW 94
HP 128
Year of manufacture 08/07 → 12/15
Model Type 3.2 16V DOHC (ML KB8)
Filter Type
Engine Code 4M41
ccm 3200
kW 118
HP 160
Year of manufacture 07/06 → 08/09
Model Type 3.2 16V DI-D 4WD (Triton HPE CD Aut/Mec)
Filter Type
Engine Code 4M41 DI-D common-rail
ccm 3200
kW 121
HP 165
Year of manufacture 01/08 →

  • 1770A012
  • TS 200011
  • MZ 690980
  • MZ 690441
  • 1770A374

No Data Available

SVHC declaration according to the regulation EC 1907/2006 concerning the Registration, Evaluation, Authorisation, and Restriction of Chemicals (REACH).



Product: WF8409

MANN+HUMMEL is well aware of REACH and meets all legal obligations under this regulation.

MANN+HUMMEL has established internal processes to ensure implementation and compliance with the REACH Regulation. Especially, we continuously work on the assessment of the presence of SVHC (Substances of Very High Concern).

We may inform you that according to the present level of information and best knowledge, this product does not contain any SVHC listed on the Candidate List in a concentration above 0,1% (w/w).

Last update: 2025-05-28 00:00:00
