Hydraulics

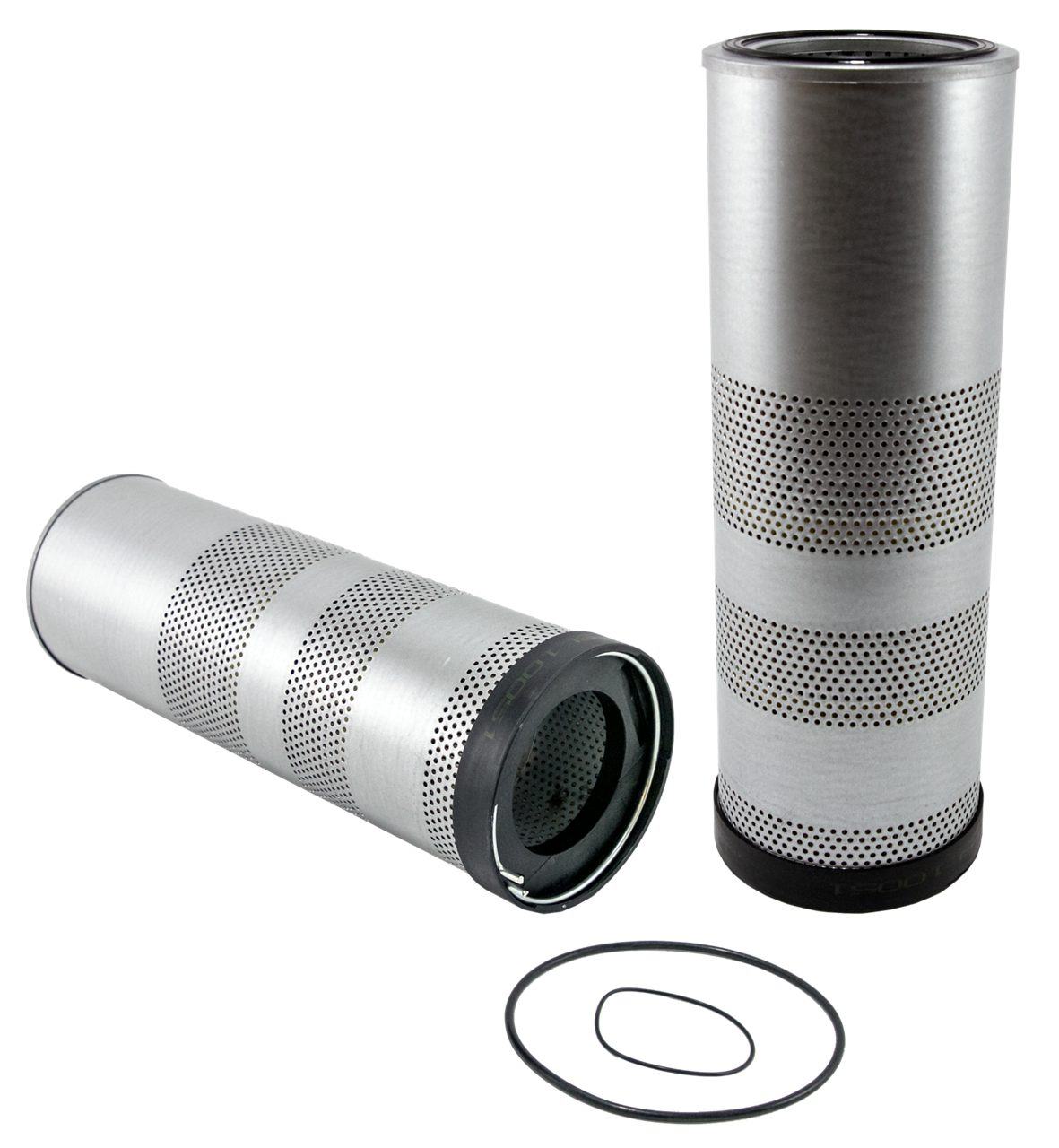

WL10051

About this item

WIX HD Hydraulic Filters feature premium media specific to the application including wire backed synthetic, enhanced cellulose and wire mesh. WIX HD Hydraulic Filters ensure leak-resistant, long-lasting performance under all operating conditions.

  • Height = 450,088 mm; Outside Diameter Top = 149,86 mm; Outside Diameter Bottom = 154,305 mm; Inside Diameter Top = 97,257 mm; Inside Diameter Bottom = 94,742 mm; Flow Type = Full flow; Media Type = Cellulose

GTIN code:

Product Details

No Data Available

Height 450.1 mm
Inside Diameter Bottom 94.7 mm
Inside Diameter Top 97.3 mm
Outside Diameter Bottom 154.3 mm
Outside Diameter Top 149.9 mm

Filter media material
Operating temperature min. (°C) -17.777
Operating temperature max. (°C) -17.777
Filter with by-pass valve No
Filter with anti-drain valve No
Filter with anti-siphon valve No

Model Type Filter Type Engine Code ccm kW HP Year of manufacture
160 LC Hydraulics filter JOHN DEERE 4045T - 77 105
Model Type 160 LC
Filter Type Hydraulics filter
Engine Code JOHN DEERE 4045T
ccm -
kW 77
HP 105
Year of manufacture

No Data Available

No Data Available

SVHC declaration according to the regulation EC 1907/2006 concerning the Registration, Evaluation, Authorisation, and Restriction of Chemicals (REACH).



Product: WL10051

MANN+HUMMEL is well aware of REACH and meets all legal obligations under this regulation.

MANN+HUMMEL has established internal processes to ensure implementation and compliance with the REACH Regulation. Especially, we continuously work on the assessment of the presence of SVHC (Substances of Very High Concern).

We may inform you that according to the present level of information and best knowledge, this product does not contain any SVHC listed on the Candidate List in a concentration above 0,1% (w/w).

Last update: 2026-03-23 00:00:00
