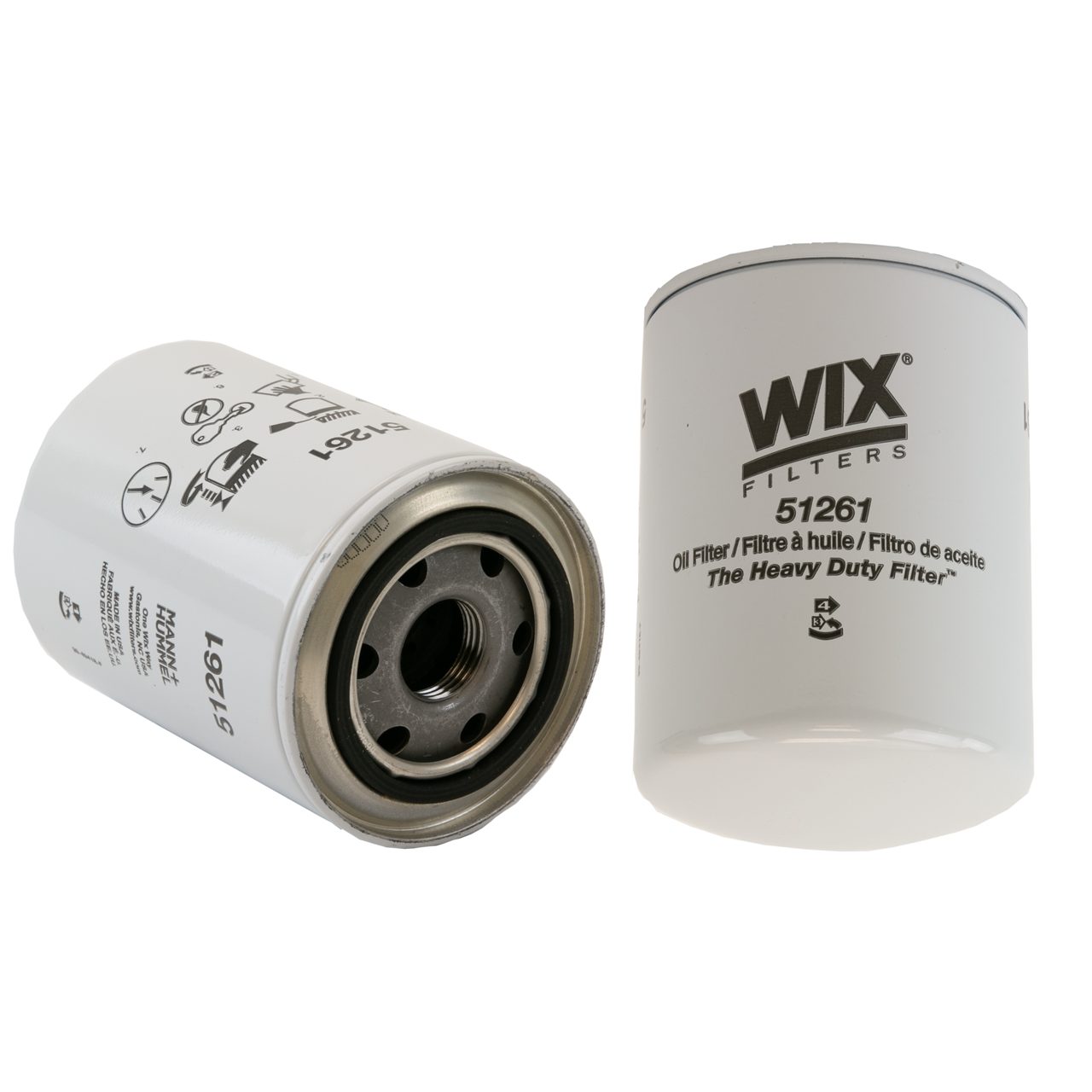

Oil Filter
51261

About this item

WIX HD Oil Filters provide superior engine protection with high-quality, high-capacity media for applications such as medium and heavy trucks, farm, construction, mining, and other equipment. WIX HD Oil Filters feature corrosion-resistant components for leak-resistant, long-lasting performance.

  • Height = 131,216 mm; Outside Diameter Top = 93,548 mm; Nominal Micron Rating = 32 µm; Thread Size = 1-12; Bypass Valve Opening Pressure = 1,31 bar; Beta Ratio = 2/20=30/41; Burst Pressure = 24,132 bar; Flow Type = Full flow; Min. Flow Rate = 60,566 l/min;

GTIN code: 765809512610

Product Details

No Data Available

Height 131.2 mm
Outside Diameter Top 93.5 mm
Thread Size 1-12 mm

Max. Flow Rate (l/min) 45.424
Min. Flow Rate 60.565
Filter media material
Beta Ratio 2/20=30/41
Nominal Micron Rating 32
Burst pressure 24.131
Operating temperature min. (°C) -17.777
Operating temperature max. (°C) -17.777
Bypass Valve Opening Pressure 1.31
Filter with by-pass valve No
Filter with anti-drain valve No
Filter with anti-siphon valve No

No Data Available

  • 6V8892
  • 3I-0722
  • 3I-1332
  • 6V-3690

  • 39329602

No Data Available

SVHC declaration according to the regulation EC 1907/2006 concerning the Registration, Evaluation, Authorisation, and Restriction of Chemicals (REACH).



Product: 51261

MANN+HUMMEL is well aware of REACH and meets all legal obligations under this regulation.

MANN+HUMMEL has established internal processes to ensure implementation and compliance with the REACH Regulation. Especially, we continuously work on the assessment of the presence of SVHC (Substances of Very High Concern).

We may inform you that according to the present level of information and best knowledge, this product does not contain any SVHC listed on the Candidate List in a concentration above 0,1% (w/w).

Last update: 2026-03-23 00:00:00

Safety notice: Filters and similar components must only be installed by persons with relevant mechanical knowledge and experience, see IEC 60417 - 6183
