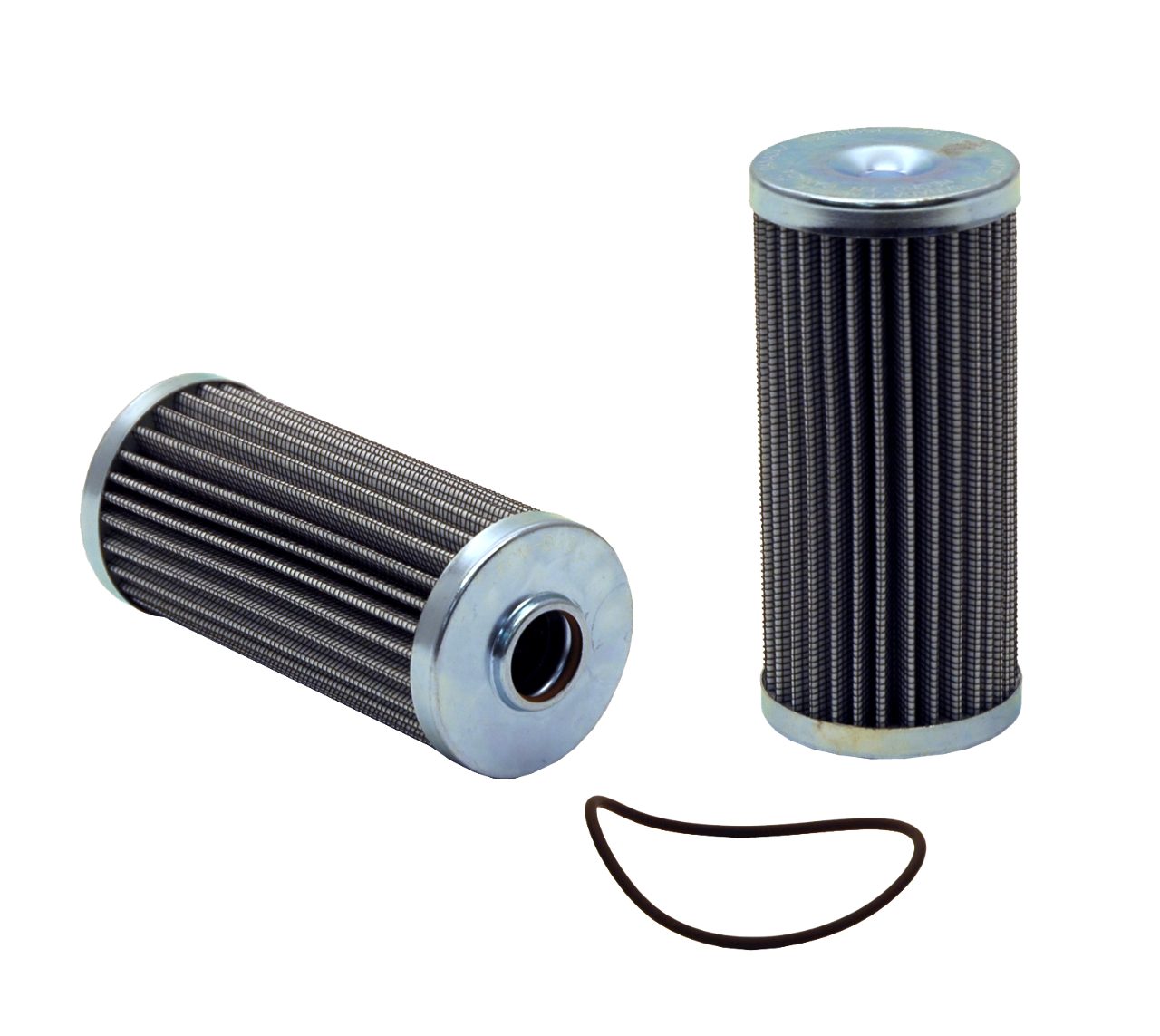

Product Image D29B10GAV_WIX
Product Image D29B10GAV_WIX

Hydraulics
D29B10GAV
New

About this item

  • Height = 122,5 mm; Outside Diameter Top = 55,3 mm; Outside Diameter Bottom = 55,3 mm; Inside Diameter Top = 19,0 mm; Nominal Micron Rating = 10 µm; Beta Ratio = 200/9.9; Beta Ratio 2 = 1000/12.4; Flow Type = Fullflow; Flow Direction = Outside-In; Capacity
  • Main application: Various Industrial Hydraulic Applications
  • Industrial Hydraulics

GTIN code:

Product Details

No Data Available

Height 122.5 mm
Inside Diameter Top 19 mm
Outside Diameter Bottom 55.3 mm
Outside Diameter Top 55.3 mm

Filter media material
Beta Ratio 200/9.9
Nominal Micron Rating 10
Dirt Capacity (weight) 11.16
Operating temperature min. (°C) 48.888
Operating temperature max. (°C) -31.666

No Data Available

No Data Available

No Data Available

SVHC declaration according to the regulation EC 1907/2006 concerning the Registration, Evaluation, Authorisation, and Restriction of Chemicals (REACH).



Product: D29B10GAV

MANN+HUMMEL is well aware of REACH and meets all legal obligations under this regulation.

MANN+HUMMEL has established internal processes to ensure implementation and compliance with the REACH Regulation. Especially, we continuously work on the assessment of the presence of SVHC (Substances of Very High Concern).

We may inform you that according to the present level of information and best knowledge, this product does not contain any SVHC listed on the Candidate List in a concentration above 0,1% (w/w).

Last update: 2026-03-23 00:00:00

Safety notice: Filters and similar components must only be installed by persons with relevant mechanical knowledge and experience, see IEC 60417 - 6183
