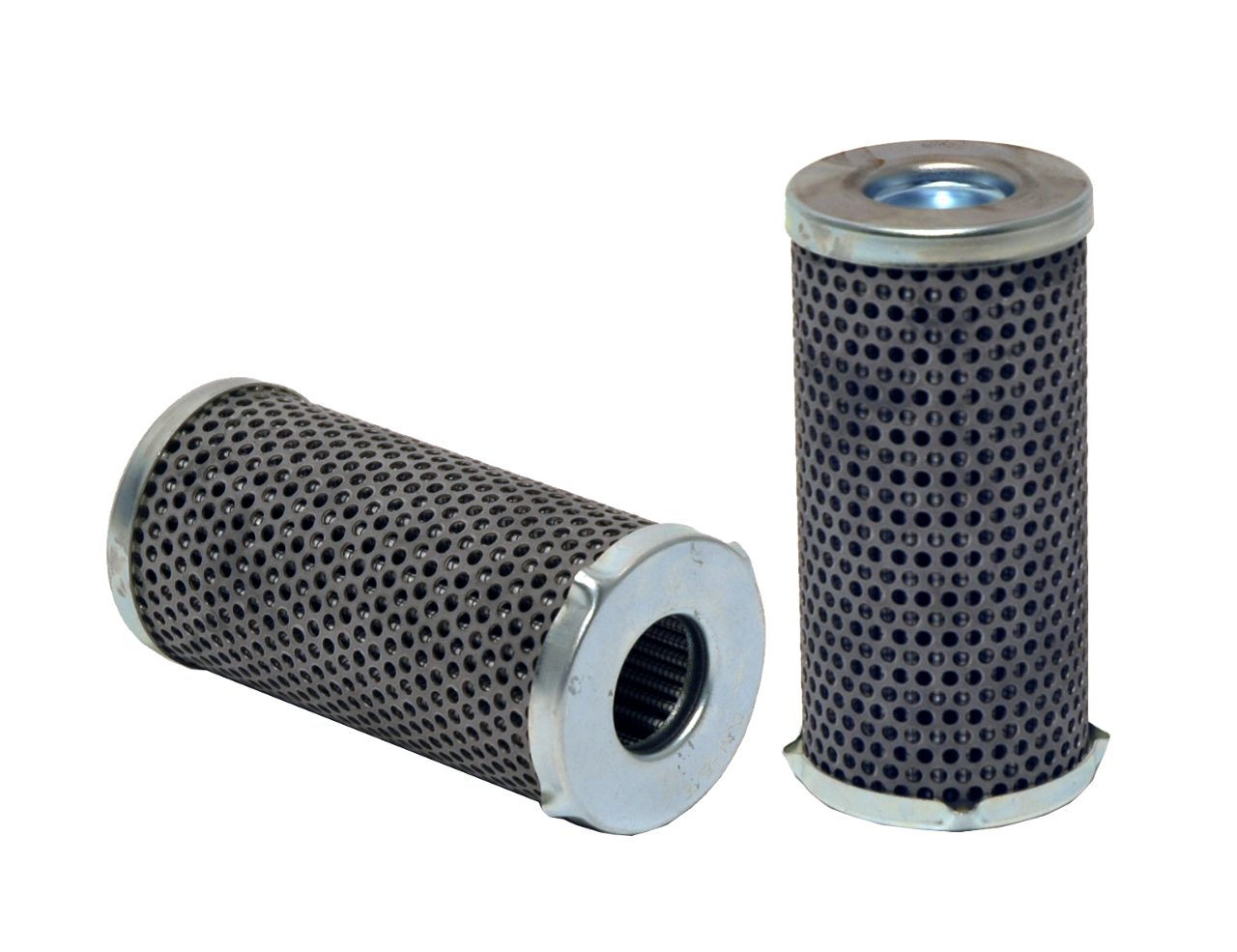

Product Image D77A25G_WIX
Product Image D77A25G_WIX

Hydraulics
D77A25G
New

About this item

  • Height = 123,0 mm; Outside Diameter Top = 60,0 mm; Outside Diameter Bottom = 60,0 mm; Inside Diameter Top = 27 mm; Nominal Micron Rating = 25 µm; Beta Ratio = 200/20.7; Beta Ratio 2 = 1000/26.6; Flow Type = Fullflow; Flow Direction = Outside-In; Capacity;
  • Main application: Various Industrial Hydraulic Applications
  • Industrial Hydraulics

GTIN code:

Product Details

No Data Available

Height 123 mm
Inside Diameter Top 27 mm
Outside Diameter Bottom 60 mm
Outside Diameter Top 60 mm

Filter media material
Beta Ratio 200/20.7
Nominal Micron Rating 25
Dirt Capacity (weight) 12.03
Operating temperature min. (°C) 48.888
Operating temperature max. (°C) -31.666

No Data Available

No Data Available

No Data Available

SVHC declaration according to the regulation EC 1907/2006 concerning the Registration, Evaluation, Authorisation, and Restriction of Chemicals (REACH).



Product: D77A25G

MANN+HUMMEL is well aware of REACH and meets all legal obligations under this regulation.

MANN+HUMMEL has established internal processes to ensure implementation and compliance with the REACH Regulation. Especially, we continuously work on the assessment of the presence of SVHC (Substances of Very High Concern).

We may inform you that according to the present level of information and best knowledge, this product does not contain any SVHC listed on the Candidate List in a concentration above 0,1% (w/w).

Last update: 2026-03-23 00:00:00

Safety notice: Filters and similar components must only be installed by persons with relevant mechanical knowledge and experience, see IEC 60417 - 6183
