Hydraulics

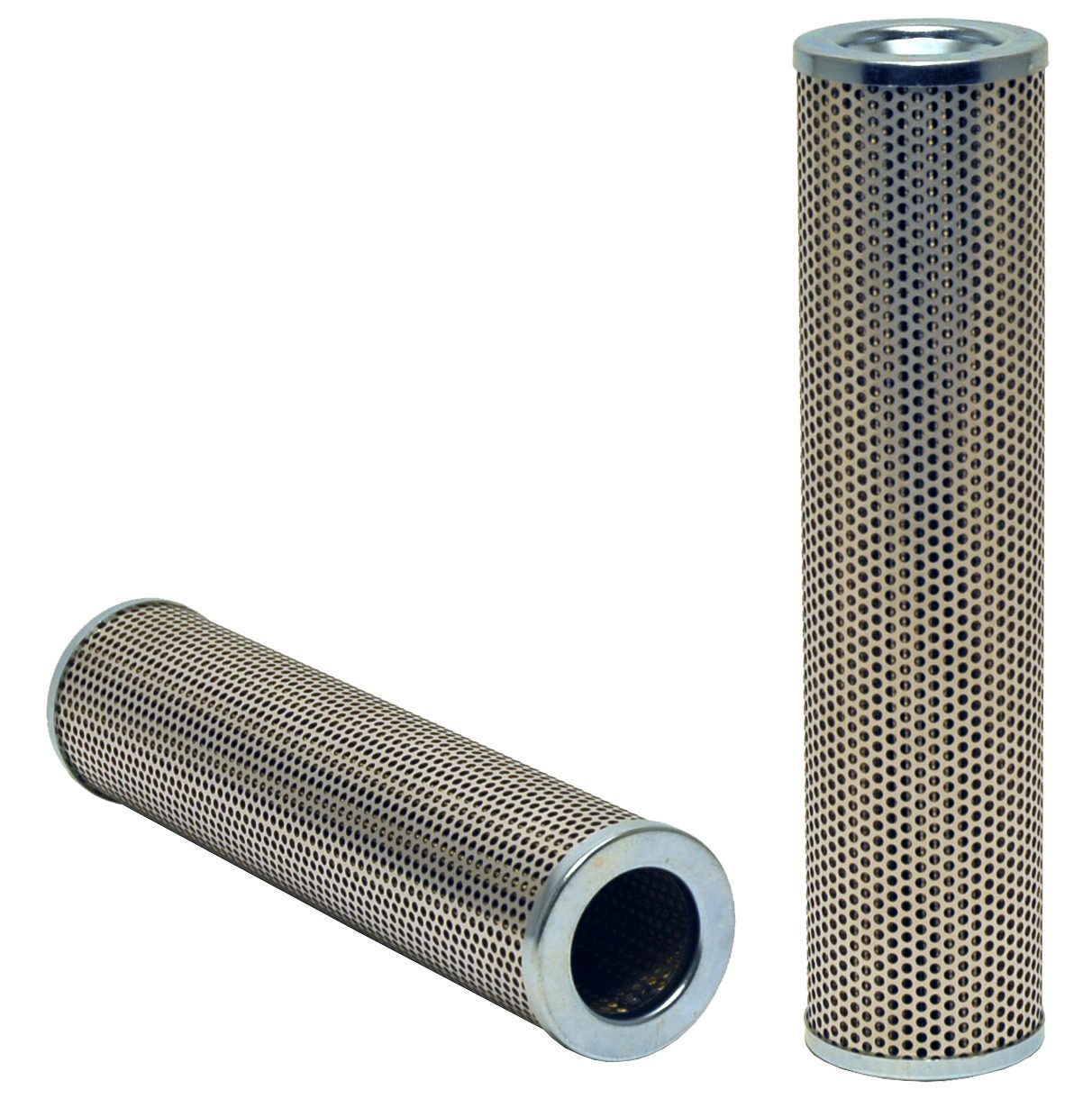

R14E10G

About this item

WIX HD Hydraulic Filters feature premium media specific to the application including wire backed synthetic, enhanced cellulose and wire mesh. WIX HD Hydraulic Filters ensure leak-resistant, long-lasting performance under all operating conditions.

  • Height = 279,908 mm; Outside Diameter Top = 130,048 mm; Outside Diameter Bottom = 130,048 mm; Inside Diameter Top = 85,09 mm; Inside Diameter Bottom = 85,09 mm; Nominal Micron Rating = 10 µm; Beta Ratio = 200/9.9; Beta Ratio 2 = 1000/12.4; Flow Type = Ful
  • Industrial Hydraulics

GTIN code:

Product Details

No Data Available

Height 279.9 mm
Inside Diameter Bottom 85.1 mm
Inside Diameter Top 85.1 mm
Outside Diameter Bottom 130 mm
Outside Diameter Top 130 mm

Filter media material
Beta Ratio 200/9.9
Nominal Micron Rating 10
Operating temperature min. (°C) 48.888
Operating temperature max. (°C) -31.666
Filter with by-pass valve No
Filter with anti-drain valve No
Filter with anti-siphon valve No

No Data Available

No Data Available

No Data Available

SVHC declaration according to the regulation EC 1907/2006 concerning the Registration, Evaluation, Authorisation, and Restriction of Chemicals (REACH).



Product: R14E10G

MANN+HUMMEL is well aware of REACH and meets all legal obligations under this regulation.

MANN+HUMMEL has established internal processes to ensure implementation and compliance with the REACH Regulation. Especially, we continuously work on the assessment of the presence of SVHC (Substances of Very High Concern).

We may inform you that according to the present level of information and best knowledge, this product does not contain any SVHC listed on the Candidate List in a concentration above 0,1% (w/w).

Last update: 2026-03-23 00:00:00

Safety notice: Filters and similar components must only be installed by persons with relevant mechanical knowledge and experience, see IEC 60417 - 6183
