WA9616
WA9616

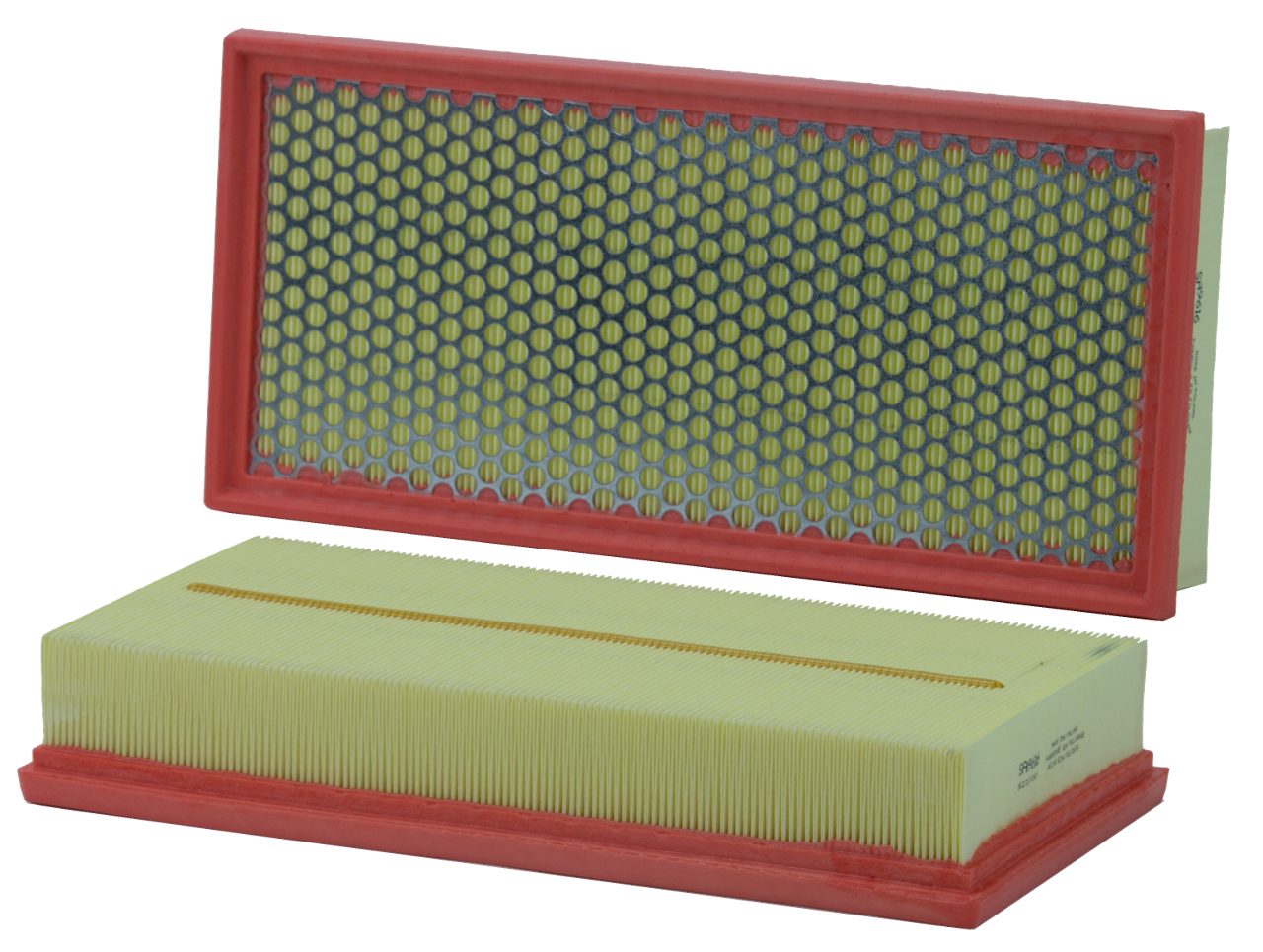

Air Filter
WA9616

About this item

WIX Premium Panel Air Filters contain more media than OES filters. The high-tear strength polyurethane seal survives extreme hot and cold temperature conditions, protecting engines for normal and severe driving conditions such as stop and go traffic, dirt roads, construction sites, short trips, and interstate travel.

  • A = 363 mm; B = 172 mm; H = 60 mm

GTIN code:

Product Details

A 363 mm
B 172 mm
H 60 mm

Model Type Filter Type Engine Code ccm kW HP Year of manufacture
2.3 TD Air Filter MB OM 601 2299 74 101 09/01 →
2.7 D Air Filter D27DTP 2696 137 186 04/02 →
2.7 Xdi Air Filter D27DT 2696 118 160 03/11 → 04/13
2.7 Xdi Air Filter D27DTP 2696 132 179 03/11 → 04/13
2.9 TD Air Filter MB OM602 2874 88 120 08/01 → 08/06
2.9 TDS Air Filter MB OM602 2874 107 145 02/04 →
Model Type 2.3 TD
Filter Type Air Filter
Engine Code MB OM 601
ccm 2299
kW 74
HP 101
Year of manufacture 09/01 →
Model Type 2.7 D
Filter Type Air Filter
Engine Code D27DTP
ccm 2696
kW 137
HP 186
Year of manufacture 04/02 →
Model Type 2.7 Xdi
Filter Type Air Filter
Engine Code D27DT
ccm 2696
kW 118
HP 160
Year of manufacture 03/11 → 04/13
Model Type 2.7 Xdi
Filter Type Air Filter
Engine Code D27DTP
ccm 2696
kW 132
HP 179
Year of manufacture 03/11 → 04/13
Model Type 2.9 TD
Filter Type Air Filter
Engine Code MB OM602
ccm 2874
kW 88
HP 120
Year of manufacture 08/01 → 08/06
Model Type 2.9 TDS
Filter Type Air Filter
Engine Code MB OM602
ccm 2874
kW 107
HP 145
Year of manufacture 02/04 →

Model Type Filter Type Engine Code ccm kW HP Year of manufacture
2.0 di Air Filter 1998 114 155 05/13 →
Model Type 2.0 di
Filter Type Air Filter
Engine Code
ccm 1998
kW 114
HP 155
Year of manufacture 05/13 →

  • 23190-08400
  • 23190-08403
  • 23190-08020

No Data Available

SVHC declaration according to the regulation EC 1907/2006 concerning the Registration, Evaluation, Authorisation, and Restriction of Chemicals (REACH).



Product: WA9616

MANN+HUMMEL is well aware of REACH and meets all legal obligations under this regulation.

MANN+HUMMEL has established internal processes to ensure implementation and compliance with the REACH Regulation. Especially, we continuously work on the assessment of the presence of SVHC (Substances of Very High Concern).

We may inform you that according to the present level of information and best knowledge, this product does not contain any SVHC listed on the Candidate List in a concentration above 0,1% (w/w).

Last update: 2025-05-28 00:00:00

Safety notice: Filters and similar components must only be installed by persons with relevant mechanical knowledge and experience, see IEC 60417 - 6183
