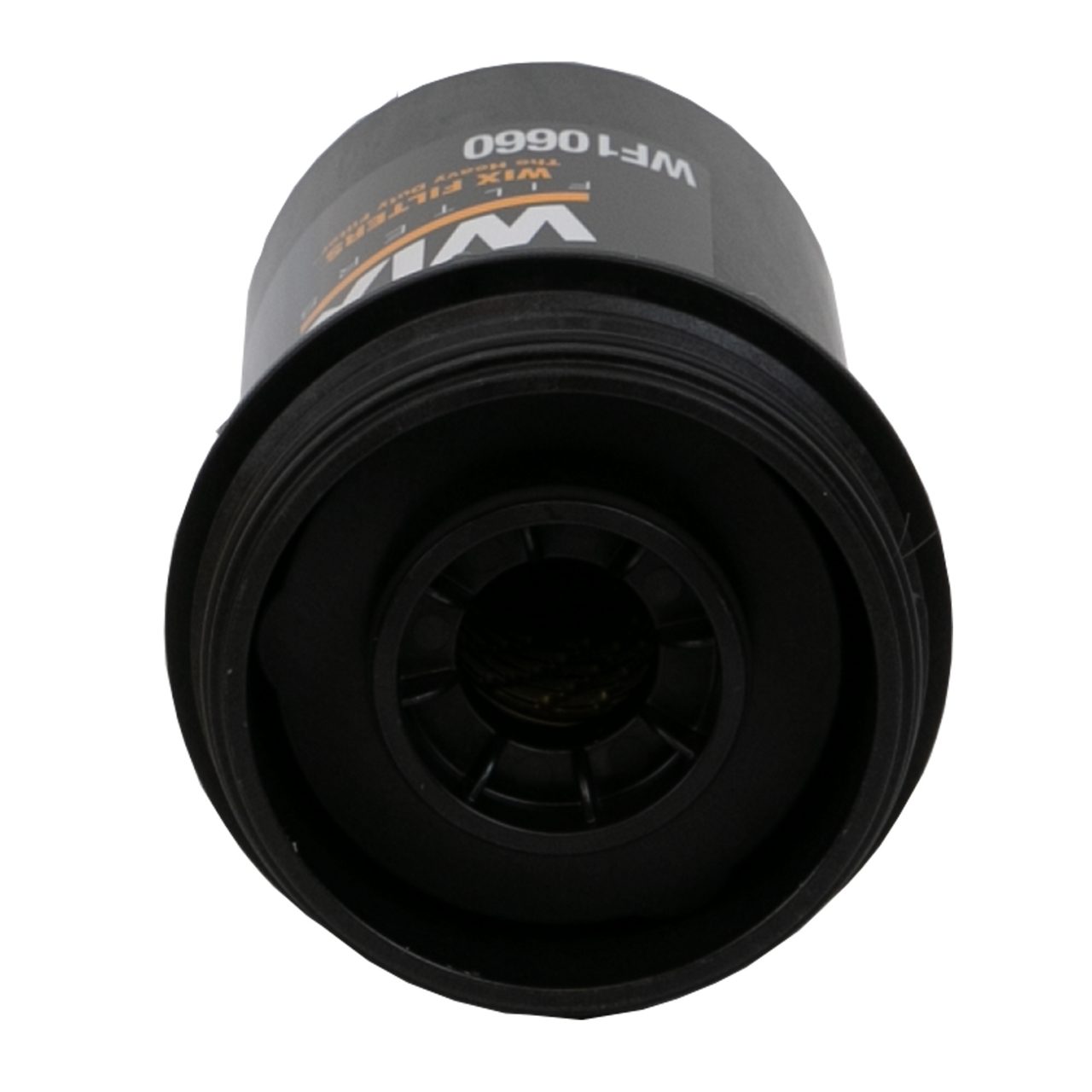

Fuel Filter
WF10660
New

About this item

WIX HD Fuel Water Separator Filters feature enhanced cellulose or full synthetic media that provides excellent contaminant holding capacity for super clean fuel and water removal. Some models feature a water drain port with a threaded plug or patented self-venting drain valve for efficient water purging as needed.

  • Height = 189,23 mm; Outside Diameter Top = 99,06 mm; Thread Size = M94x3; With Water-Drain = Yes; Media Type = Cellulose

GTIN code: 765809921863

Product Details

No Data Available

Height 189.2 mm
Outside Diameter Top 99.1 mm
Thread Size M94x3 mm

Filter media material
Operating temperature min. (°C) -17.777
Operating temperature max. (°C) -17.777
Filter with by-pass valve No
Filter with anti-drain valve No
Filter with anti-siphon valve No

Model Type Filter Type Engine Code ccm kW HP Year of manufacture
37.7
Fuel Filter Kubota - 85 116 01/13 → 12/16
38.10 (ZNVESM285KXE) Fuel Filter - - -
38.10 Evo 2 (ZNVLSM285MXE) Fuel Filter Kubota - 85 116 01/15 → 12/16
40.7 (ZNVESC285MXE) Fuel Filter - - -
Model Type 37.7
Filter Type Fuel Filter
Engine Code Kubota
ccm -
kW 85
HP 116
Year of manufacture 01/13 → 12/16
Model Type 38.10 (ZNVESM285KXE)
Filter Type Fuel Filter
Engine Code
ccm -
kW -
HP -
Year of manufacture
Model Type 38.10 Evo 2 (ZNVLSM285MXE)
Filter Type Fuel Filter
Engine Code Kubota
ccm -
kW 85
HP 116
Year of manufacture 01/15 → 12/16
Model Type 40.7 (ZNVESC285MXE)
Filter Type Fuel Filter
Engine Code
ccm -
kW -
HP -
Year of manufacture

Model Type Filter Type Engine Code ccm kW HP Year of manufacture
60.9 VS EVO2 - GD
Fuel Filter FPT Tier 4 Final 4485 125 168
Model Type 60.9 VS EVO2 - GD
Filter Type Fuel Filter
Engine Code FPT Tier 4 Final
ccm 4485
kW 125
HP 168
Year of manufacture

Model Type Filter Type Engine Code ccm kW HP Year of manufacture
T 80
Fuel Filter FPT F4HFE4134*B002 Tier 4Final 4485 96 129 01/18 →
T 80 (ZNVESL500LXE) Fuel Filter FPT - - - 01/15 → 12/16
Model Type T 80
Filter Type Fuel Filter
Engine Code FPT F4HFE4134*B002 Tier 4Final
ccm 4485
kW 96
HP 129
Year of manufacture 01/18 →
Model Type T 80 (ZNVESL500LXE)
Filter Type Fuel Filter
Engine Code FPT
ccm -
kW -
HP -
Year of manufacture 01/15 → 12/16

Model Type Filter Type Engine Code ccm kW HP Year of manufacture
35.7 (BAC) Fuel Filter FPT - 93 126 01/14 → 12/15
Model Type 35.7 (BAC)
Filter Type Fuel Filter
Engine Code FPT
ccm -
kW 93
HP 126
Year of manufacture 01/14 → 12/15

Model Type Filter Type Engine Code ccm kW HP Year of manufacture
50.19 Fuel Filter FPT Tier 3 4485 104 139 01/18 → 12/20
50.21 Fuel Filter FPT NEF 4-CR Tier 3 4485 96 131 01/18 → 12/20
Model Type 50.19
Filter Type Fuel Filter
Engine Code FPT Tier 3
ccm 4485
kW 104
HP 139
Year of manufacture 01/18 → 12/20
Model Type 50.21
Filter Type Fuel Filter
Engine Code FPT NEF 4-CR Tier 3
ccm 4485
kW 96
HP 131
Year of manufacture 01/18 → 12/20

Model Type Filter Type Engine Code ccm kW HP Year of manufacture
60.9 Agri Max Fuel Filter - - -
Model Type 60.9 Agri Max
Filter Type Fuel Filter
Engine Code
ccm -
kW -
HP -
Year of manufacture

No Data Available

No Data Available

SVHC declaration according to the regulation EC 1907/2006 concerning the Registration, Evaluation, Authorisation, and Restriction of Chemicals (REACH).



Product: WF10660

MANN+HUMMEL is well aware of REACH and meets all legal obligations under this regulation.

MANN+HUMMEL has established internal processes to ensure implementation and compliance with the REACH Regulation. Especially, we continuously work on the assessment of the presence of SVHC (Substances of Very High Concern).

We may inform you that according to the present level of information and best knowledge, this product does not contain any SVHC listed on the Candidate List in a concentration above 0,1% (w/w).

Last update: 2026-03-23 00:00:00

Safety notice: Filters and similar components must only be installed by persons with relevant mechanical knowledge and experience, see IEC 60417 - 6183
