Product Specifications

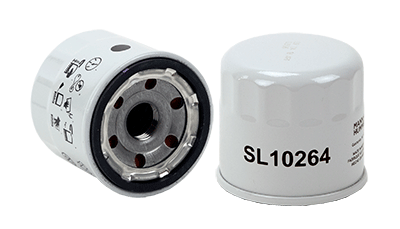

Part Number:WL10264
UPC Number:765809340114
Style:Spin-On Lube Filter
Service:Lube
Type:
Media:Cellulose
Height:2.637 (67)*
Outer Diameter Top:2.795 (71)*
Outer Diameter Bottom:Closed:
Thread Size:3/4-16
By-Pass Valve Setting-PSI:16
Anti-Drain Back Valve:Yes
(  )* denotes metric

Gasket Diameters

NumberO.D.I.D.Thk.
Attached 2.563 (65)*2.261 (57)*0.25 (6)*

Principle Application:

Principle Application:John Deere, Oreion Utility Vehicles
All Applications
