Product Specifications

Part Number:R2525GA
UPC Number:765809952423
Style:Cartridge Hydraulic Metal Canister Filter
Type:Full Flow
Height:9.52 (242)*
Outer Diameter:2.52 (64)*
Inside Diameter:1.5 (38)*
Beta Ratio:200
Nominal Micron Rating:5
Operating Temp. (min):-13
Operating Temp. (max):248
Flow Direction:Outside-In
Filter Area:296
(  )* denotes metric

Gasket Diameters

0 ()*0 ()*0 ()*

Principle Application:

Principle Application:Various Industrial Applications
All Applications
Best viewed in Chrome, Firefox, IE9 and above

Part Number: R2525GA

Error: Embedded data could not be displayed.

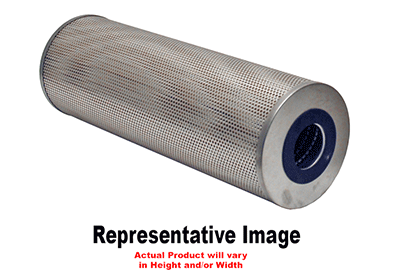

Representative Image
