Product Specifications

Part Number:R44110TA
UPC Number:765809952300
Style:Cartridge Hydraulic Metal Canister Filter
Type:Full Flow
Media:Stainless Mesh
Height:3.22 (82)*
Outer Diameter:2.84 (72)*
Inside Diameter Top:1.77 (45)*
Inside Diameter Bottom:0.33 (8)*
Beta Ratio:10
Nominal Micron Rating:10
Operating Temp. (min):-13
Operating Temp. (max):248
Flow Direction:Inside-Out
(  )* denotes metric

Gasket Diameters

0 ()*0 ()*0 ()*

Principle Application:

Principle Application:Various Industrial Applications
All Applications
Best viewed in Chrome, Firefox, IE9 and above

Part Number: R44110TA

Error: Embedded data could not be displayed.

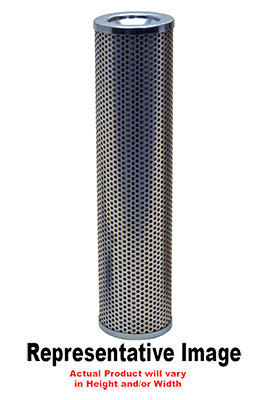

Representative Image
