Product Specifications

Part Number:R1309GAV
UPC Number:765809952294
Style:Cartridge Hydraulic Metal Canister Filter
Type:Full Flow
Height:15.55 (395)*
Outer Diameter:3.46 (88)*
Inside Diameter:1.58 (40)*
Beta Ratio:200
Nominal Micron Rating:10
Operating Temp. (min):-13
Operating Temp. (max):248
Flow Direction:Outside-In
(  )* denotes metric

Gasket Diameters

0 ()*0 ()*0 ()*

Principle Application:

Principle Application:Various Industrial Applications
All Applications
Best viewed in Chrome, Firefox, IE9 and above

Part Number: R1309GAV

Error: Embedded data could not be displayed.

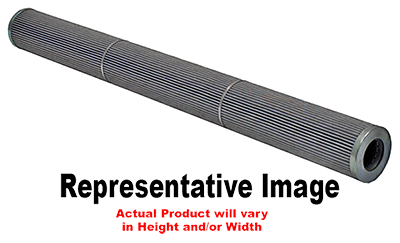

Representative Image
