Product Specifications

Part Number:	R47350SAV
UPC Number:	765809952225
Style:	Cartridge Hydraulic Metal Canister Filter
Service:	Hydraulic
Type:	Full Flow
Media:	Stainless Mesh
Height:	36.25 (921)*
Outer Diameter:	5.65 (144)*
Inside Diameter Top:	Closed:
Inside Diameter Bottom:	3.8 (97)*
Beta Ratio:	2
Nominal Micron Rating:	50
Operating Temp. (min):	-13
Operating Temp. (max):	248
Flow Direction:	Outside-In
Filter Area:	5072

( )* denotes metric

Gasket Diameters

Number	O.D.	I.D.	Thk.
	0 ()*	0 ()*	0 ()*

Principle Application:

Various Industrial Applications

All Applications

Best viewed in Chrome, Firefox, IE9 and above

Part Number: R47350SAV

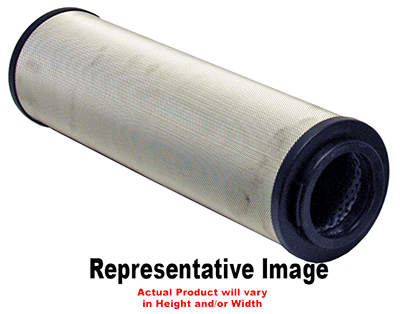

Representative Image
