Product Specifications

Part Number:R40025XAV
UPC Number:765809952188
Style:Cartridge Hydraulic Metal Canister Filter
Type:Full Flow
Height:5.67 (144)*
Outer Diameter:2.36 (60)*
Inside Diameter Top:Closed:
Inside Diameter Bottom:1.35 (34)*
By-Pass Valve Setting-PSI:44
Beta Ratio:2
Nominal Micron Rating:25
Operating Temp. (min):-13
Operating Temp. (max):248
Flow Direction:Outside-In
(  )* denotes metric

Gasket Diameters

0 ()*0 ()*0 ()*

Principle Application:

Principle Application:Various Industrial Applications
All Applications
Best viewed in Chrome, Firefox, IE9 and above

Part Number: R40025XAV

Error: Embedded data could not be displayed.

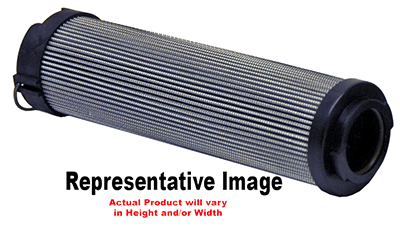

Representative Image
