Product Specifications

Part Number:R3563AA
UPC Number:765809951822
Style:Cartridge Hydraulic Metal Canister Filter
Type:Full Flow
Height:5.82 (148)*
Outer Diameter:2.91 (74)*
Inside Diameter Top:1.5 (38)*
Inside Diameter Bottom:1.81 (46)*
Beta Ratio:50
Nominal Micron Rating:3
Operating Temp. (min):-13
Operating Temp. (max):248
Flow Direction:Outside-In
(  )* denotes metric

Gasket Diameters


No Gaskets found..

Principle Application:

Principle Application:Various Industrial Applications
All Applications
Best viewed in Chrome, Firefox, IE9 and above

Part Number: R3563AA

Error: Embedded data could not be displayed.

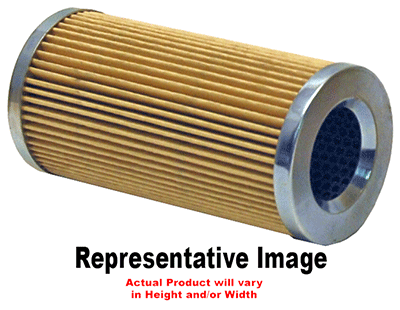

Representative Image
